Description
Clear, consistent installation sound for indoor spaces and outdoor listening areas
The JBL Control 25-1 is a compact two-way installation speaker for background music, foreground playback and speech in restaurants, retail spaces, hospitality venues and outdoor areas. Its 5.25-inch woven-fibreglass woofer and 0.75-inch PEI tweeter combine with 100° × 100° coverage to serve a broad listening area from a compact wall-mounted enclosure.
Use its built-in transformer for a 70V or 100V distributed system, or select the 8-ohm THRU setting for a compatible low-impedance amplifier. The included InvisiBall mounting system allows the speaker to be positioned and aimed to suit the installation. Sold as one speaker.
Key Features
- Two-way driver system — A 135mm woven-fibreglass woofer with butyl-rubber surround works with a 19mm PEI-diaphragm tweeter for music and voice reproduction.
- Wide listening coverage — Nominal 100° horizontal × 100° vertical coverage supports background and foreground audio across the listening space.
- Flexible amplifier connection — Selectable 70V/100V transformer taps and an 8-ohm THRU setting accommodate distributed or low-impedance systems.
- Indoor/outdoor construction — A high-impact polystyrene enclosure and zinc-plated, powder-coated grille support weather-resistant installation, with a standard IP44 rating.
- Optional enhanced weather protection — IP55 protection requires the optional WeatherMax grille together with an MTC-PC2 or MTC-PC3 panel cover. These accessories are not part of the standard speaker configuration.
- Included InvisiBall mounting system — An adjustable wall-mount system helps aim the speaker toward the intended listening area.
- Compact enclosure — The cabinet measures 243 × 188 × 145mm, with a total installed depth of 203mm on the InvisiBall bracket.
Specifications
| Specification | Details |
|---|---|
| Model | JBL Control 25-1 |
| Speaker type | Passive, two-way indoor/outdoor installation speaker |
| Applications | Background music, foreground audio and speech |
| Low-frequency driver | 135mm (5.25-inch) woven-fibreglass cone with pure butyl-rubber surround and Weather-Edge frame protection |
| High-frequency driver | 19mm (0.75-inch) PEI diaphragm with ferro-magnetic fluid cooling |
| Frequency range (−10dB) | 60Hz–20kHz |
| Frequency response (±3dB) | 85Hz–17kHz |
| Continuous program rating | 200W, 2-hour rating |
| Continuous pink-noise power, 2 hours | 100W; 400W peak |
| Continuous pink-noise power, 100 hours | 75W; 300W peak |
| Sensitivity | 90dB, 1W/1m, averaged over 100Hz–10kHz |
| Maximum SPL at 1m | 110dB average continuous pink noise; 116dB peak |
| Nominal coverage | 100° horizontal × 100° vertical |
| Nominal impedance | 8 ohms in THRU mode |
| 70V transformer taps | 30W, 15W, 7.5W, 3.7W |
| 100V transformer taps | 30W, 15W, 7.5W |
| Transformer insertion loss | Less than 0.94dB at any tap setting |
| Crossover network | Second-order low-pass and third-order high-pass |
| Recommended protective high-pass filter | 60Hz, 24dB/octave, for 8-ohm operation and all transformer taps |

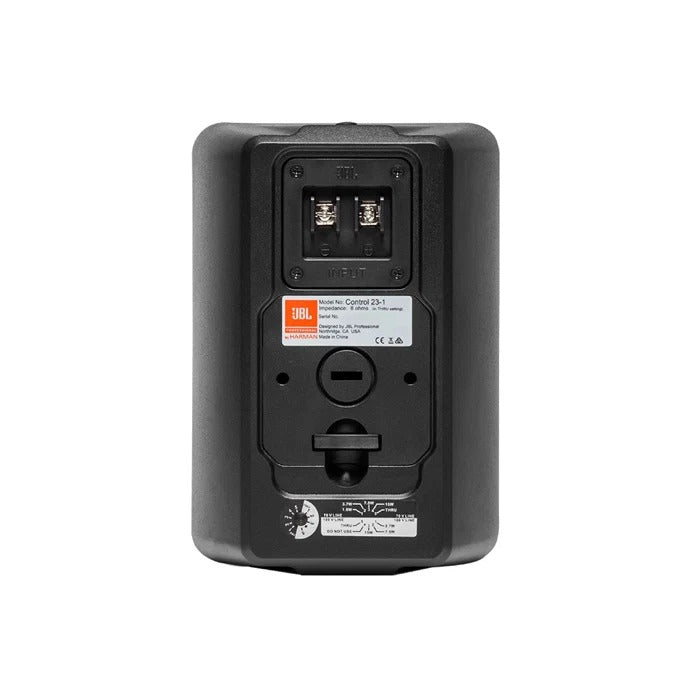

| Input connection | Screw-down terminal strip; accepts bare wire up to 12 AWG / 2.5mm² and compatible open lugs |
| Enclosure | High-impact polystyrene (HIPS) |
| Grille | Zinc-plated grille with TGIC polyester powder-coated finish |
| Standard weather protection | IP44 |
| Optional upgraded weather protection | IP55 with MTC-25WMG-1 WeatherMax grille plus MTC-PC2 or MTC-PC3 panel cover, sold separately |
| Mounting | Included InvisiBall wall-mount system; top and bottom attachment points for optional U-bracket; rear secondary safety attachment point |
| Dimensions (H × W × D) | 243 × 188 × 145mm |
| Total depth on included bracket | 203mm |
| Net weight per speaker | 3.4kg |
| Manufacturer colour options | Black (RAL9004); white Control 25-1-WH (RAL9016) |
| Sales unit | Each, one speaker |
What's in the Box
- 1 × JBL Control 25-1 speaker
- 1 × InvisiBall wall-mounting system
- 6mm × 100mm hex key
Pair with a compatible installation amplifier, selecting either low-impedance operation or the appropriate distributed-line transformer tap for your system.
