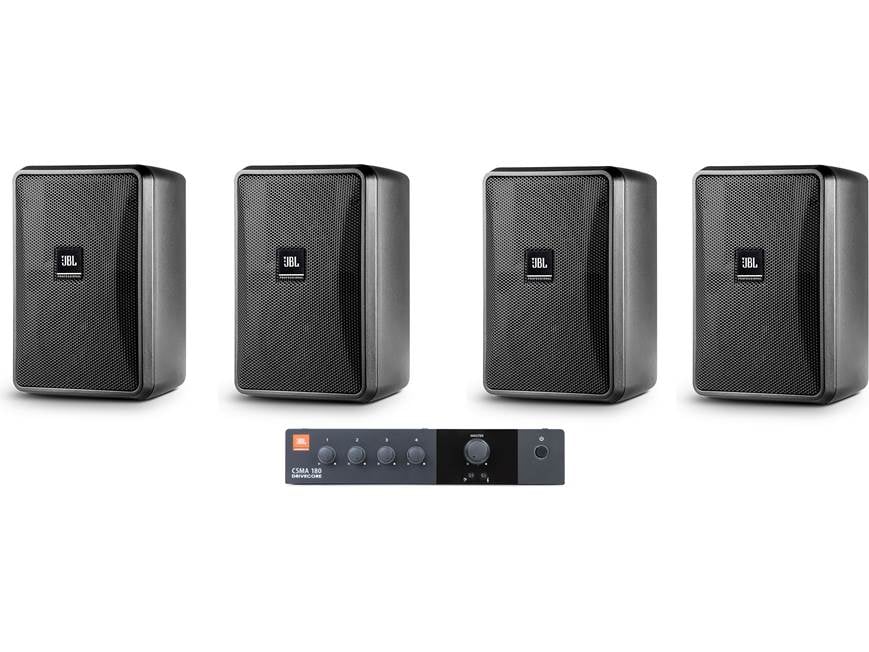

JBL Control 23-1 & CSMA 180 Commercial Surface-Mount Speaker & Mixer/Amp Bundle (Package)
Genuine Product
100% Original
Authentic products sourced through authorized and verified channels. We never sell refurbished, used or parallel imported items.
Brand New & Sealed
Factory Sealed Item
Brand new, unused and factory sealed for complete peace of mind.
Manufacturer Warranty
Official Warranty
Official manufacturer warranty for your complete protection.
GST Invoice Included
Proper GST Invoice
Receive a valid GST invoice with every purchase.
Cash on Delivery
COD Available
Cash on Delivery is available for eligible products and locations.
Secure Payment
Safe & Secure Checkout
Your payment information is always safe and encrypted.
Expert AV Support
Professional Assistance
Get expert help before and after your purchase.
Fast & Secure Delivery
Carefully Packed & Shipped
Quick delivery with secure and premium packaging.
Couldn't load pickup availability

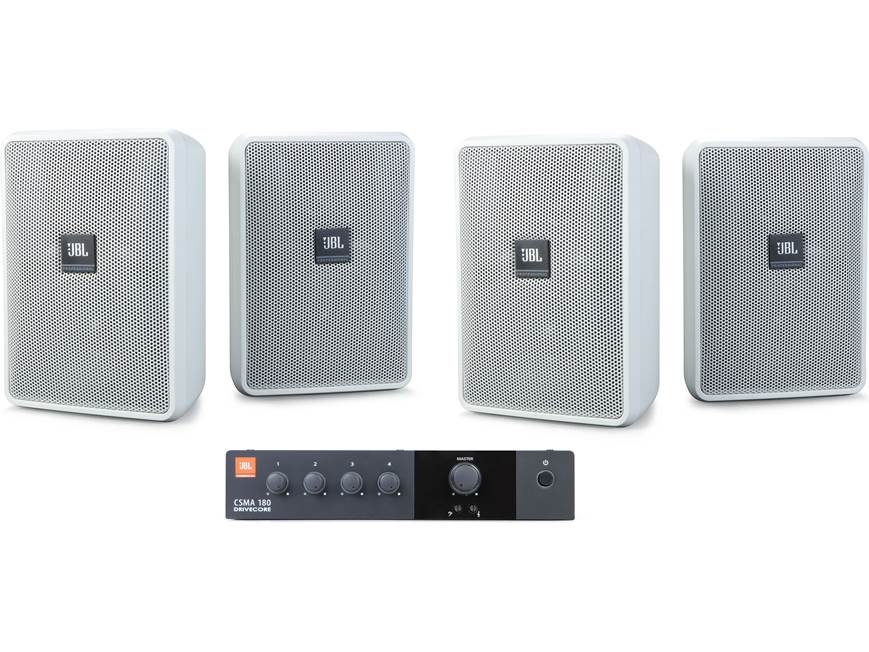

JBL Control 23-1 and CSMA 180 Commercial Surface-Mount Speaker and Mixer/Amp Bundle Delivering a Complete, Ready-to-Install Commercial Audio Solution with Two Pairs of Weather-Resistant Surface-Mount Speakers and a Four-Input Mixer/Amplifier for Retail, Hospitality, and Light Commercial Installations
The JBL Control 23-1 and CSMA 180 Commercial Bundle is a purpose-built commercial audio package combining two pairs of JBL Control 23-1 weather-resistant surface-mount speakers with the JBL CSMA 180 four-input commercial mixer/amplifier. This bundle is designed for installers and business owners seeking a straightforward, high-quality background music and paging solution for retail stores, restaurants, cafes, offices, hotel lobbies, and light commercial or outdoor applications. The Control 23-1 speakers deliver smooth, wide-coverage sound in a compact, weather-resistant enclosure, while the CSMA 180 provides four inputs, clean amplification power, and flexible setup options — everything needed to get a professional commercial audio system running from a single package.
Bundle Contents
| Type | Model | Role | Qty |
|---|---|---|---|
| Surface-Mount Speaker | JBL Control 23-1 | Weather-Resistant Surface-Mount Speakers | 2 Pairs (4 units) |
| Mixer/Amplifier | JBL CSMA 180 | 4-Input Commercial Mixer/Amplifier | 1 unit |
Key Features
- JBL Control 23-1 Weather-Resistant Speakers — Compact 3.5-inch 2-way surface-mount speakers with an IP44-rated weather-resistant enclosure, delivering smooth frequency response and broad 120° × 120° coverage for background music and paging in indoor and semi-outdoor environments
- JBL CSMA 180 Commercial Mixer/Amplifier — Four-input commercial mixer/amplifier with 80W total output power, priority ducking on Input 1 for paging override, and a compact, rack-mountable chassis for flexible installation
- Two Pairs of Speakers — Four Control 23-1 speakers included for coverage of two zones or a larger single space
- Weather-Resistant Design — Control 23-1 enclosures are rated for use in humid, semi-outdoor, and high-moisture environments including covered patios, poolside areas, and commercial kitchens
- Plug-and-Play Commercial Audio — All components are designed to work together out of the box; no additional amplification or processing required
- Priority Paging Input — CSMA 180 Input 1 supports priority ducking for microphone paging or announcement override over background music
Specifications — JBL Control 23-1 (Each)
| Specification | Details |
|---|---|
| Type | 2-Way Surface-Mount Speaker |
| Woofer | 3.5" (89mm) polypropylene cone |
| Tweeter | 0.75" (19mm) dome tweeter |
| Frequency Response | 120Hz – 20kHz (−10dB) |
| Sensitivity | 86dB SPL (1W / 1m) |
| Nominal Impedance | 8Ω |
| Power Handling (Continuous) | 30W |
| Power Handling (Peak) | 120W |
| Coverage Pattern | 120° × 120° |
| Weather Resistance | Yes (IP44-rated) |
| Enclosure | Surface-mount, paintable white ABS |
| Finish | Black |
| Qty in Bundle | 2 Pairs (4 units total) |
Specifications — JBL CSMA 180 Mixer/Amplifier
| Specification | Details |
|---|---|
| Type | 4-Input Commercial Mixer/Amplifier |
| Total Output Power | 80W (into 4Ω or 8Ω loads) |
| Inputs | 4 (Input 1: priority mic/line, Inputs 2–4: line) |
| Priority Ducking | Yes (Input 1) |
| Speaker Output | 4Ω, 8Ω, 70V, 100V |
| Rack Mount | Yes (1U, rack-mountable) |
| Dimensions (H × W × D) | 44 × 482 × 270mm (1U) |
| Finish | Black |
What's in the Box
- 4 × JBL Control 23-1 Surface-Mount Speakers (2 pairs)
- 1 × JBL CSMA 180 Commercial Mixer/Amplifier
- Mounting brackets (Control 23-1)
- Power cable (CSMA 180)
- User manuals
Ideal for retail stores, cafes, restaurants, hotel lobbies, offices, and covered outdoor areas. Professional installation recommended. Available at Harmony AV — Authorized JBL Professional Dealer in India.
