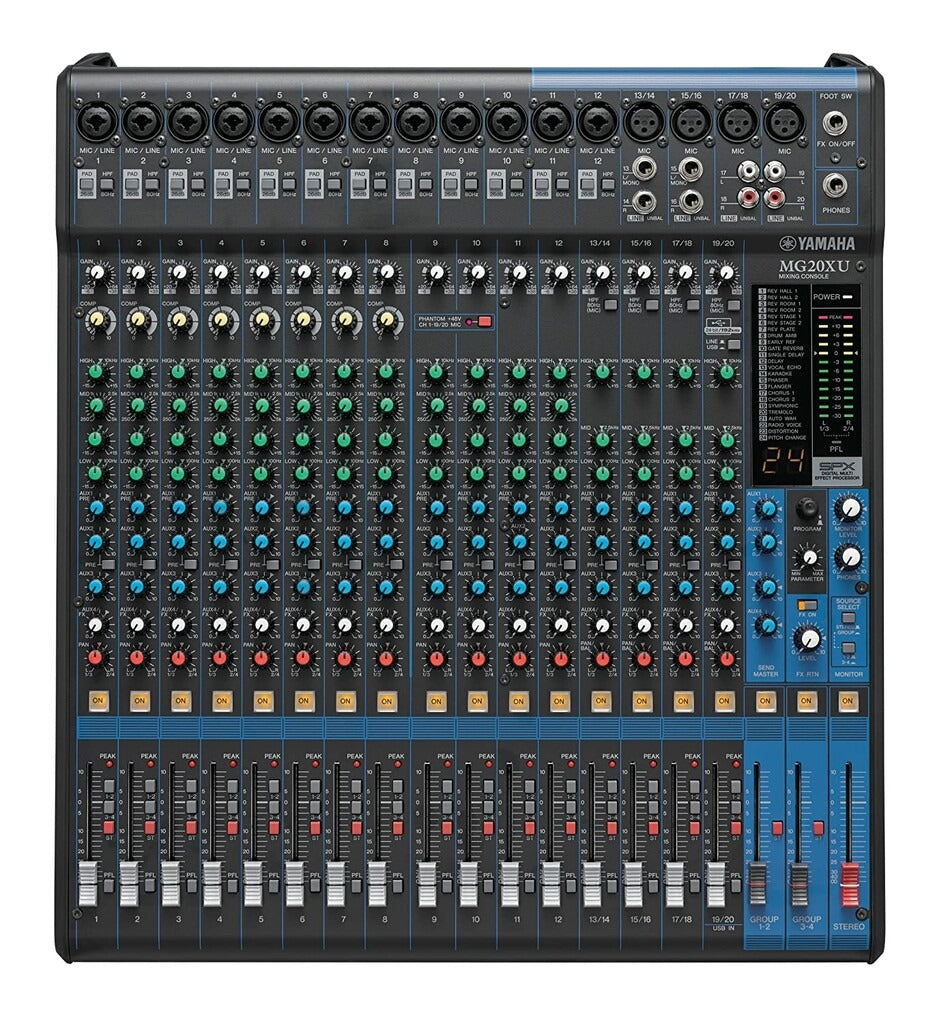

Yamaha MG20XU 20-Channel Analogue Mixing Console with USB Audio Interface and SPX Effects Delivering Sixteen D-PRE Discrete Class-A Microphone Preamps, Plug-and-Play USB Recording, and Studio-Quality Built-In Effects for Large Live Sound, Houses of Worship, and Touring Productions
The Yamaha MG20XU is a professional 20-channel analogue mixing console that combines sixteen D-PRE discrete class-A microphone preamps with a stereo USB audio interface for driverless computer recording and playback, a 24-program SPX multi-effects processor, per-channel 1-knob compressors, and four group buses — delivering a comprehensive all-in-one mixing solution for large live bands, houses of worship, corporate AV integrators, and touring productions who demand professional-grade preamp quality, USB recording capability, built-in SPX effects, and dynamics control in a single, road-ready analogue console. The class-compliant USB interface works with all major DAWs on Mac and PC without driver installation, while the robust steel chassis and comprehensive I/O make the MG20XU equally at home on the road or in a permanent installation.
Key Features
- Yamaha D-PRE Discrete Class-A Mic Preamps — Sixteen channels of D-PRE discrete class-A microphone preamps delivering ultra-low noise, wide dynamic range, and transparent Yamaha preamp character trusted on professional touring consoles
- Stereo USB Audio Interface — Class-compliant stereo USB send/return for plug-and-play DAW recording and computer playback on Mac and PC without drivers
- 24-Program SPX Multi-Effects Processor — Built-in SPX effects with 24 programs including reverb, chorus, flanger, phaser, delay, and combination effects
- 1-Knob Compressor on Mic Channels — Per-channel single-knob compressor on all sixteen mono mic inputs for easy dynamic control on vocals and instruments
- 4 Group Buses — Four assignable group buses for sub-mixing, VCA-style grouping, and multitrack recording routing
- +48V Phantom Power — Switchable phantom power for condenser microphones on all XLR inputs
- 3-Band EQ with Swept Mid on Mono Channels — High shelf, continuously sweepable mid (100Hz–8kHz), and low shelf EQ on all mono channels for precise tonal control
- 2 Aux Sends per Channel — Two auxiliary sends per channel for monitor mixes and effects routing
- Balanced XLR Main Outputs — Professional balanced XLR main outputs for PA amplifiers or powered speakers
- Robust Steel Chassis — Heavy-duty steel construction built for the rigours of regular live touring and permanent installation
Specifications
| Specification | Details |
|---|---|
| Channels | 20 (16 mono XLR/TRS combo + 2 stereo line) |
| Mic Preamps | 16 × Yamaha D-PRE discrete class-A |
| Phantom Power | Yes (+48V, switchable) |
| Compressor | 1-knob compressor on mono mic channels |
| Effects | SPX multi-effects processor, 24 programs (reverb, chorus, flanger, phaser, delay, and more) |
| USB | Stereo USB audio interface (send/return, class-compliant, driverless) |
| EQ (Mono) | 3-band: High shelf, Swept Mid (100Hz–8kHz), Low shelf |
| EQ (Stereo) | 2-band: High shelf, Low shelf |
| Group Buses | 4 |
| Aux Sends | 2 per channel |

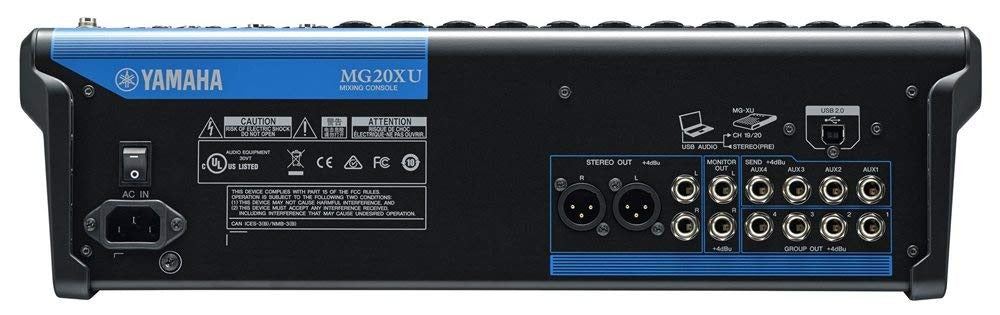

| Main Outputs | 2 × XLR (balanced) + 2 × TRS (balanced) |
| Group Outputs | 4 × TRS (balanced) |
| Monitor Output | 1 × Stereo TRS |
| Headphone Output | 1 × 6.35mm TRS with level control |
| Power | Internal (IEC mains) |
| Dimensions (H × W × D) | 107 × 618 × 400mm |
| Weight | Approx. 9.5kg |
| Finish | Black |
What's in the Box
- 1 × Yamaha MG20XU Analogue Mixing Console
- USB cable
- IEC power cable
- User manual
Ideal for large live bands, houses of worship, corporate AV, and touring productions. Pair with active PA speakers and stage monitor systems for a complete professional live sound setup. Available at Harmony AV — Authorized Yamaha Professional Dealer in India.
