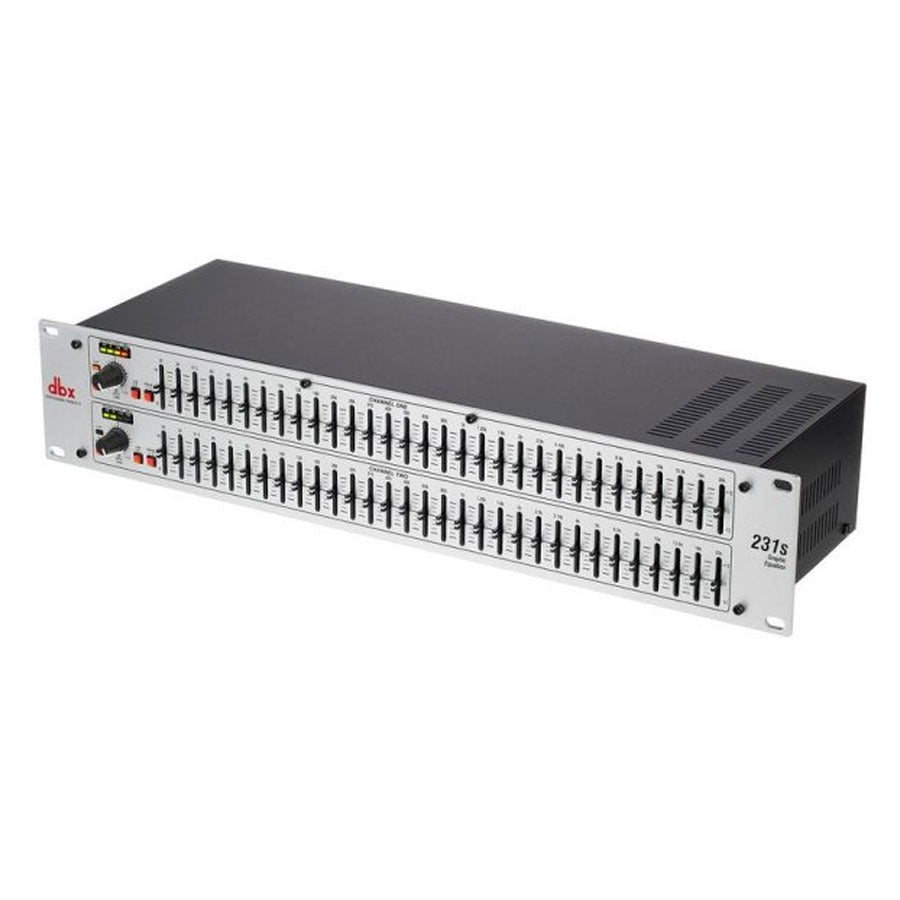

DBX 231s Dual-Channel 31-Band Graphic Equalizer (Each)
Ask us about an exclusive price for DBX 231s Dual-Channel 31-Band Graphic Equalizer (Each)
Click Here for Discount Price
Genuine Product
100% Original
Authentic products sourced through authorized and verified channels. We never sell refurbished, used or parallel imported items.
Brand New & Sealed
Factory Sealed Item
Brand new, unused and factory sealed for complete peace of mind.
Manufacturer Warranty
Official Warranty
Official manufacturer warranty for your complete protection.
GST Invoice Included
Proper GST Invoice
Receive a valid GST invoice with every purchase.
Cash on Delivery
COD Available
Cash on Delivery is available for eligible products and locations.
Secure Payment
Safe & Secure Checkout
Your payment information is always safe and encrypted.
Expert AV Support
Professional Assistance
Get expert help before and after your purchase.
Fast & Secure Delivery
Delivery in 3–6 Days
Delivery in 3–6 days with secure and safe packaging. Subject to our shipping policy.
7 Days Return Policy
7-Day Returns
Returns are available within 7 days, subject to our return policy.
Couldn't load pickup availability
Description
dbx 231s Dual-Channel 31-Band Graphic Equalizer Delivering Precise 1/3-Octave Frequency Control, Low-Noise dbx Circuitry, and Balanced XLR and TRS I/O for Live Sound, Studio, and Installed Audio Applications
The dbx 231s is a professional dual-channel 31-band graphic equalizer providing 1/3-octave frequency control across the full audible spectrum on two independent channels simultaneously. Built around dbx’s trusted low-noise circuitry with ±12dB of cut and boost on each of the 31 ISO-standard centre frequencies, balanced XLR and TRS I/O, a built-in subsonic filter, and output limiting via Type III noise reduction, the 231s is a reliable, accurate, and versatile EQ solution for live PA system tuning, studio monitor correction, feedback control, and installed audio system optimisation. Its compact 1U rack-mount form factor and comprehensive feature set make it equally at home in a touring rack, fixed installation, or studio outboard chain.
Key Features
- Dual-Channel 31-Band 1/3-Octave EQ — Two independent channels of 31-band graphic EQ covering the full audible spectrum at ISO-standard 1/3-octave centre frequencies for precise, surgical frequency correction
- ±12dB Cut/Boost per Band — Each of the 31 bands provides up to 12dB of cut or boost for flexible tonal shaping without overdriving adjacent frequency bands
- Balanced XLR & TRS I/O — Fully balanced XLR and TRS inputs and outputs on both channels for professional, noise-free connectivity in any system
- Built-In Subsonic Filter — Removes sub-audible low-frequency content to protect speaker drivers and maximise usable amplifier headroom
- Type III Noise Reduction — dbx Type III noise reduction on outputs for clean, low-noise signal transmission even at high gain settings
- Output Clip Limiting — Built-in output limiting prevents clipping and protects downstream amplifiers and speakers from signal overload
- Compact 1U Rack-Mount — Standard 1U rack-mount chassis for integration into any PA, studio, or installed AV system rack
Specifications
| Specification | Details |
|---|---|
| Channels | 2 (dual, independent) |
| Bands per Channel | 31 (1/3-octave, ISO standard centre frequencies) |
| Frequency Range | 20Hz – 20kHz |
| Cut/Boost Range | ±12dB per band |
| Inputs | 2 × XLR (balanced) + 2 × TRS (balanced) |
| Outputs | 2 × XLR (balanced) + 2 × TRS (balanced) |
| Subsonic Filter | Yes |
| Noise Reduction | dbx Type III |
| Output Limiting | Yes |
| Frequency Response | 20Hz – 20kHz (±1dB, all sliders at 0) |
| Dynamic Range | >100dB (A-weighted) |
| THD+N | <0.02% (1kHz, +4dBu) |
| Rack Size | 1U rack-mountable |
| Dimensions (H × W × D) | 44 × 482 × 165mm |
| Weight | Approx. 2.0kg |
| Finish | Black |
What's in the Box
- 1 × dbx 231s Dual-Channel 31-Band Graphic Equalizer
- IEC power cable
- User manual
