dbx 234xs Stereo 2/3-Way and Mono 4-Way Crossover with XLR Connectors Delivering Precise Frequency Division, Adjustable Crossover Points, and Professional Balanced XLR I/O for PA Systems, Subwoofer Integration, and Multi-Amplifier Setups
The dbx 234xs is a professional analogue crossover designed for live sound engineers, PA system integrators, and installation professionals who need precise, flexible frequency division to optimally drive multi-way speaker systems and subwoofer arrays. Configurable as a stereo 2-way or 3-way crossover, or a mono 4-way crossover, the 234xs provides continuously adjustable crossover frequencies across a wide range, independent level controls per output band, subsonic filter, and fully balanced XLR inputs and outputs — all in a compact 1U rack-mount chassis. Whether integrating a subwoofer into an existing two-way PA system or building a complex tri-amped or quad-amped speaker system from scratch, the dbx 234xs provides the routing flexibility and signal integrity to get the job done cleanly and professionally.
Key Features
- Stereo 2/3-Way or Mono 4-Way Crossover — Configurable for stereo 2-way, stereo 3-way, or mono 4-way operation via front-panel switching for maximum system flexibility
- Continuously Adjustable Crossover Frequencies — Low and high crossover points are independently adjustable across a wide frequency range for precise speaker system tuning
- 24dB/Octave Linkwitz-Riley Filters — Steep 24dB/octave Linkwitz-Riley crossover filters provide flat summed response and excellent band separation for professional-grade frequency division
- Balanced XLR I/O — Fully balanced XLR inputs and outputs on all channels for professional noise-free connectivity in any PA or installed system
- Independent Output Level Controls — Per-band output level trim controls allow fine adjustment of each frequency band’s drive level for precise amplifier matching
- Subsonic Filter — Built-in subsonic filter eliminates low-frequency content below the audible range that can waste amplifier power and damage drivers
- Phase Reverse Switches — Per-output phase reverse switches for alignment of physically offset driver arrays
- Compact 1U Rack-Mount — Standard 1U rack-mount chassis fits in any AV or PA system rack
Specifications
| Specification | Details |
|---|---|
| Configuration | Stereo 2/3-way or Mono 4-way (front-panel switchable) |
| Filter Type | 24dB/octave Linkwitz-Riley |
| Crossover Frequency Range | 40Hz – 16kHz (continuously adjustable) |
| Inputs | 2 × XLR (balanced) |
| Outputs | 6 × XLR (balanced) |
| Output Level Controls | Yes (per band, independent trim) |
| Phase Reverse | Yes (per output) |
| Subsonic Filter | Yes |
| Frequency Response | 10Hz – 50kHz (+0/−1dB) |
| Dynamic Range | >110dB (A-weighted) |
| THD | <0.01% (1kHz, +4dBu output) |
| Rack Size | 1U rack-mountable |
| Dimensions (H × W × D) | 44 × 482 × 165mm |
| Weight | Approx. 1.5kg |
| Finish | Black |
What's in the Box

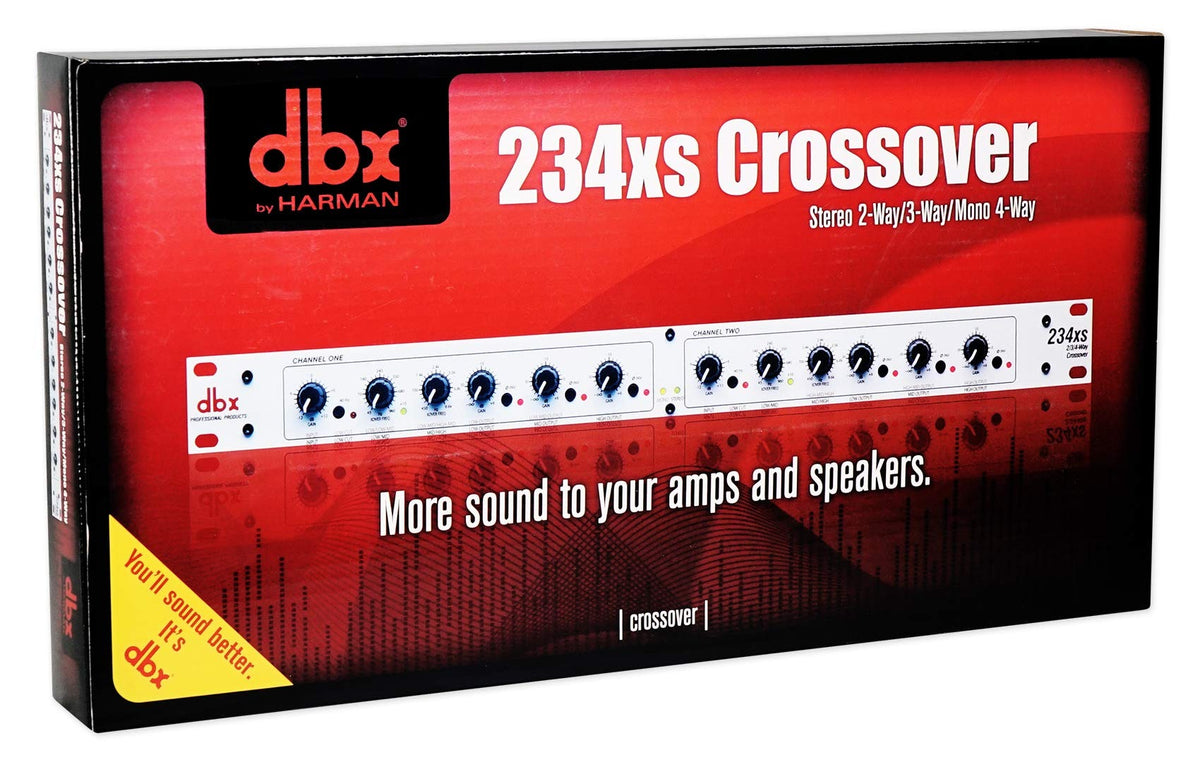

- 1 × dbx 234xs Crossover
- IEC power cable
- User manual
