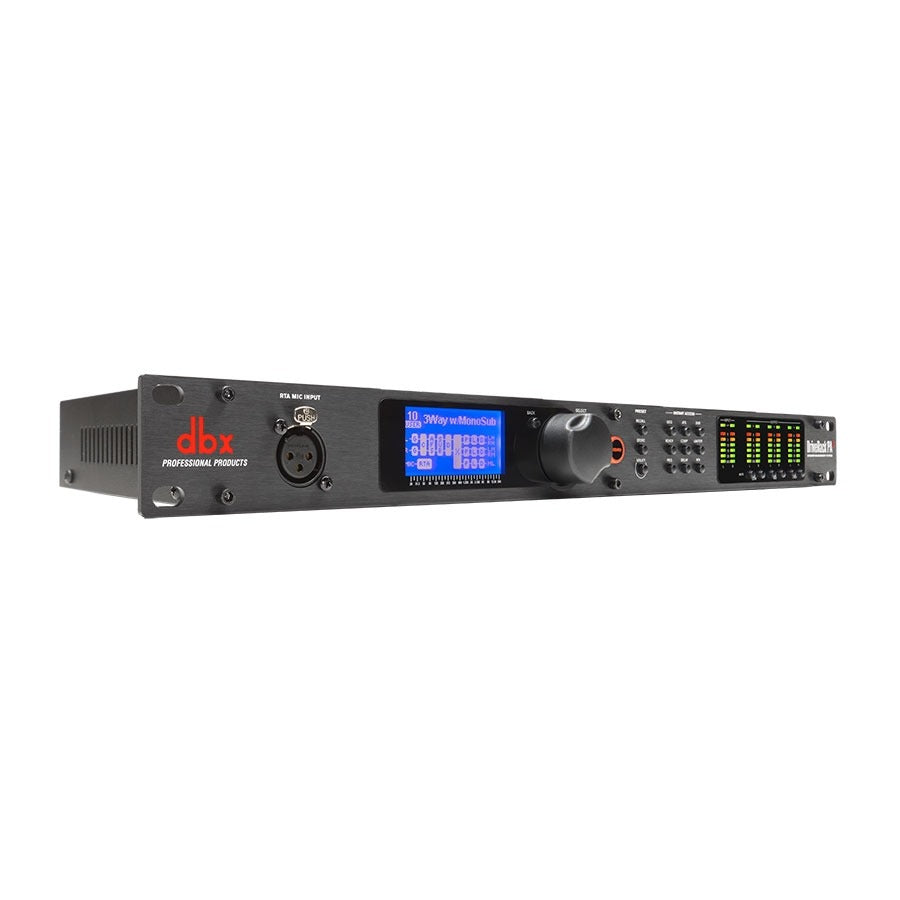

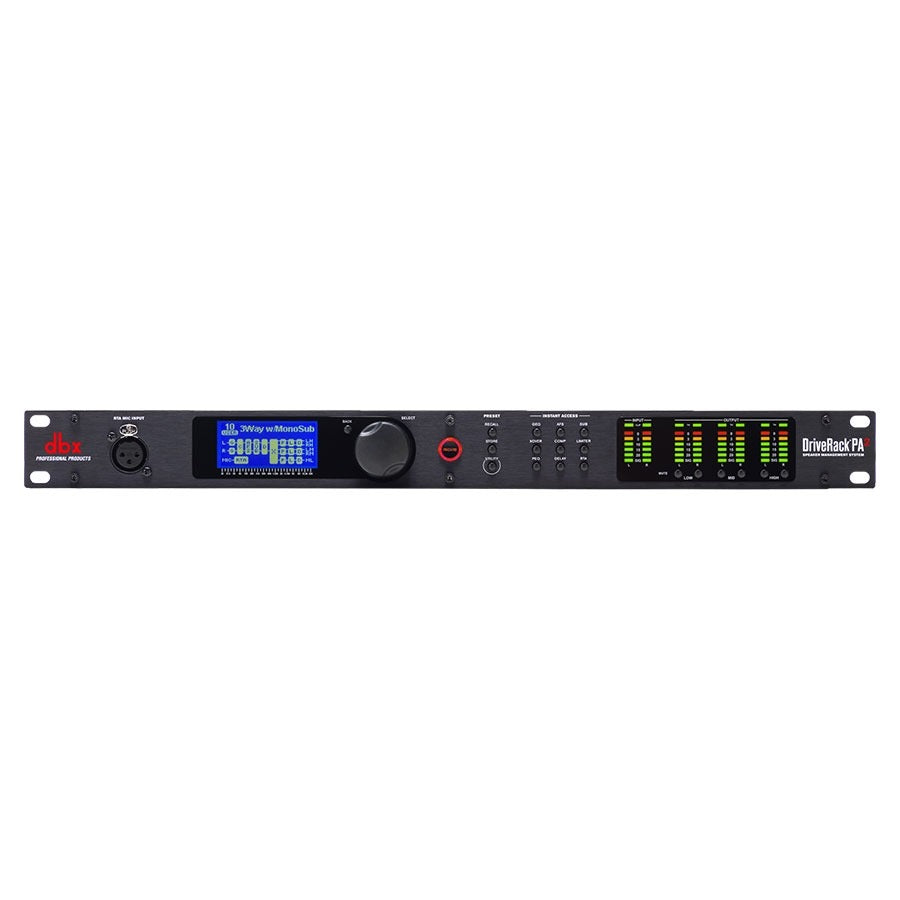

DBX DriveRack PA2 Loudspeaker Management System (Each)
Ask us about an exclusive price for DBX DriveRack PA2 Loudspeaker Management System (Each)
Click Here for Discount Price
Genuine Product
100% Original
Authentic products sourced through authorized and verified channels. We never sell refurbished, used or parallel imported items.
Brand New & Sealed
Factory Sealed Item
Brand new, unused and factory sealed for complete peace of mind.
Manufacturer Warranty
Official Warranty
Official manufacturer warranty for your complete protection.
GST Invoice Included
Proper GST Invoice
Receive a valid GST invoice with every purchase.
Cash on Delivery
COD Available
Cash on Delivery is available for eligible products and locations.
Secure Payment
Safe & Secure Checkout
Your payment information is always safe and encrypted.
Expert AV Support
Professional Assistance
Get expert help before and after your purchase.
Fast & Secure Delivery
Delivery in 3–6 Days
Delivery in 3–6 days with secure and safe packaging. Subject to our shipping policy.
7 Days Return Policy
7-Day Returns
Returns are available within 7 days, subject to our return policy.
Couldn't load pickup availability
Description
DBX DriveRack PA2 Complete Loudspeaker Management System Delivering Advanced Speaker Optimisation, Auto-EQ with RTA, Feedback Suppression, Crossover, Limiting, and Wireless Control via iOS and Android for Professional Live Sound and PA Installations
The DBX DriveRack PA2 is a comprehensive loudspeaker management system that combines everything a live sound engineer or PA system integrator needs to optimise, protect, and control a complete speaker system in a single 1U rack-mount unit. Featuring Advanced Feedback Suppression, a 28-band AutoEQ with real-time analyser (RTA), configurable 2 or 3-way crossover with Linkwitz-Riley or Butterworth filters, per-output limiting, subharmonic synthesis, and wireless control via the free DBX DriveRack PA2 app for iOS and Android, the DriveRack PA2 is the definitive speaker processor for touring engineers, houses of worship, corporate AV installers, and permanent venue installations who demand professional-grade system control with unprecedented ease of use.
Key Features
- 28-Band AutoEQ with RTA — Wizard-guided automatic equalisation using a built-in real-time analyser and measurement microphone (included) to optimise the frequency response of the entire PA system to the room in minutes
- Advanced Feedback Suppression (AFS) — DBX Advanced Feedback Suppression automatically detects and eliminates feedback frequencies using fixed and dynamic filters without affecting programme material
- Configurable Crossover — 2-way or 3-way crossover with selectable Linkwitz-Riley (12/24/48dB) or Butterworth (12/18/24dB) filter slopes for precise frequency division between full-range and subwoofer speaker systems
- Per-Output Limiting — Independent peak and RMS limiting on each output for comprehensive speaker driver and amplifier protection
- Subharmonic Synthesis — DBX subharmonic synthesiser adds low-frequency content below the fundamental for enhanced bass impact from smaller subwoofer systems
- Wireless iOS & Android Control — Full system control via the free DBX DriveRack PA2 app over Wi-Fi for remote adjustment from the mix position without interrupting the show
- Setup Wizard — Step-by-step guided setup wizard walks through system configuration, speaker alignment, and AutoEQ for fast, accurate system optimisation

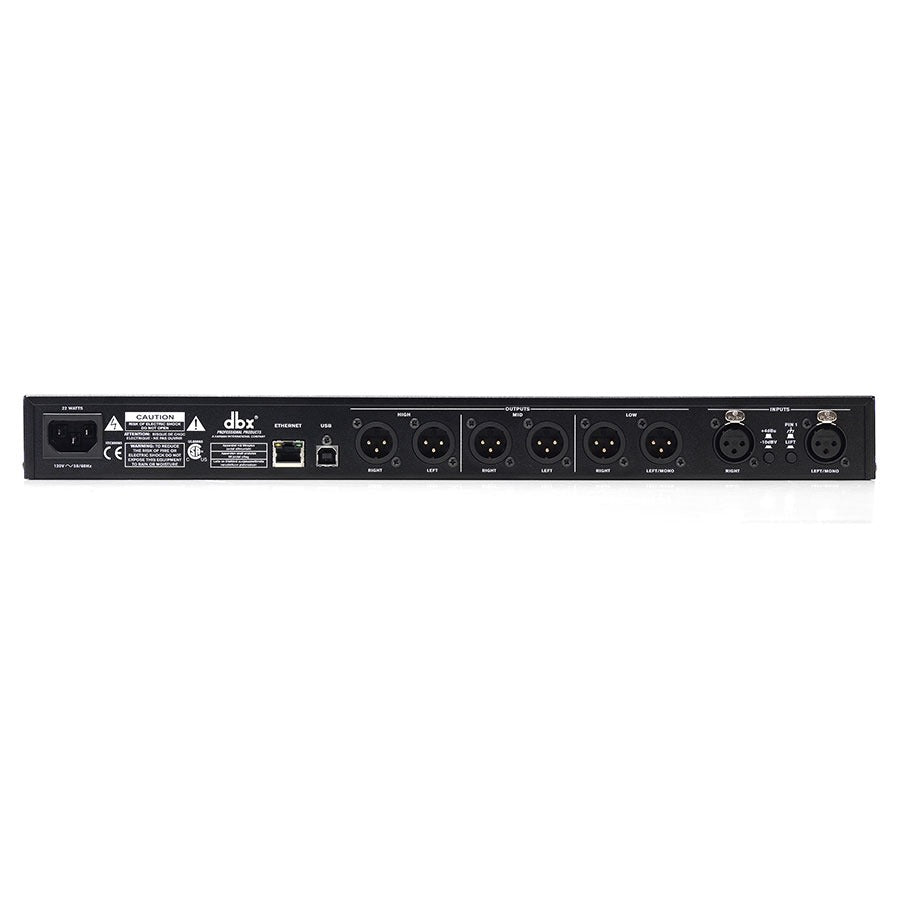

- Balanced XLR I/O — Fully balanced XLR inputs (stereo) and outputs (6 total) for professional, noise-free connectivity in any PA system
Specifications
| Specification | Details |
|---|---|
| Inputs | 2 × XLR (balanced stereo) |
| Outputs | 6 × XLR (balanced; configurable per crossover mode) |
| Crossover | 2-way or 3-way; Linkwitz-Riley (12/24/48dB) or Butterworth (12/18/24dB) |
| AutoEQ | 28-band with built-in RTA and measurement microphone |
| Feedback Suppression | DBX Advanced Feedback Suppression (AFS) |
| Limiting | Peak + RMS per output |
| Subharmonic Synthesis | Yes |
| Wireless Control | Wi-Fi; iOS & Android (free DBX DriveRack PA2 app) |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| Dynamic Range | >109dB (A-weighted) |
| THD+N | <0.01% (1kHz, +4dBu) |
| Rack Size | 1U rack-mountable |
| Dimensions (H × W × D) | 44 × 482 × 165mm |
| Weight | Approx. 1.8kg |
| Finish | Black |
What's in the Box
- 1 × DBX DriveRack PA2 Loudspeaker Management System
- RTA measurement microphone
- IEC power cable
- User manual
HARMONY AV EXPERT GUIDANCE
Expert guidance for a better AV setup
Choosing one product or planning a complete system? Discuss your room, existing equipment and priorities with Harmony AV to explore suitable options.
Discuss your needs. Plan your room. Explore suitable equipment.
- Product selection
- Home theatre planning
- Commercial AV setup
- Product compatibility
- Setup guidance
Contact us to discuss availability, service options and pricing for your location.
You may also like
DBX

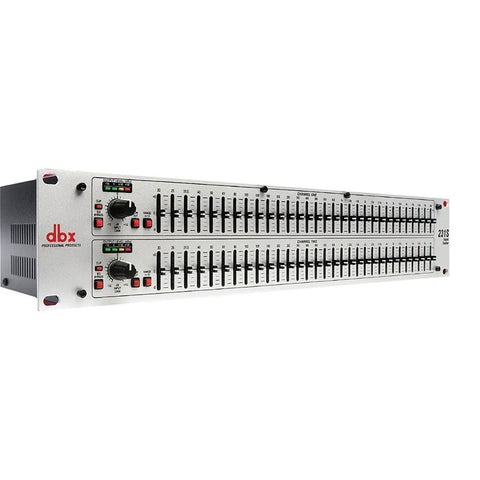

DBX 231s Dual-Channel 31-Band Graphic Equalizer (Each)
Signal Processor
DBX
dbx 234xs Stereo 2/3-Way Mono 4-Way Crossover with XLR (Each)
Signal Processor
DBX

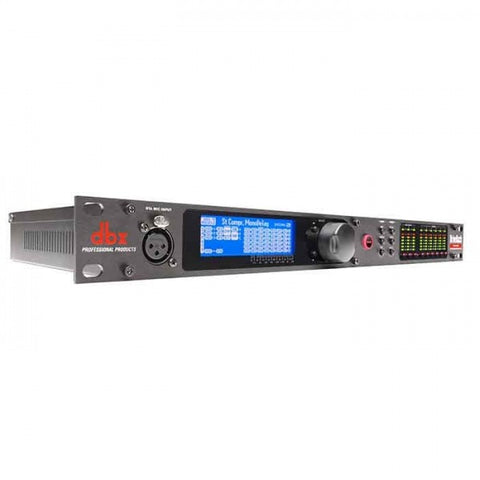

DBX Venue 360 Complete Loudspeaker Management System 400W (Each)
